The FerroFinestra W75 TB system keeps the streamlined and clean design of the FerroFinestra family while offering superior thermal insulation. It features flush and overlapping aesthetics, an efficient polyamide insulating core, and a profile design that accommodates the latest selective insulating glass. The W75 TB system responds to the most demanding projects, for all types of windows and doors where the highest aesthetic and performance requirements are expected. Available in bright steel, galvanized steel, stainless steel, Cor-Ten steel.
Main Features

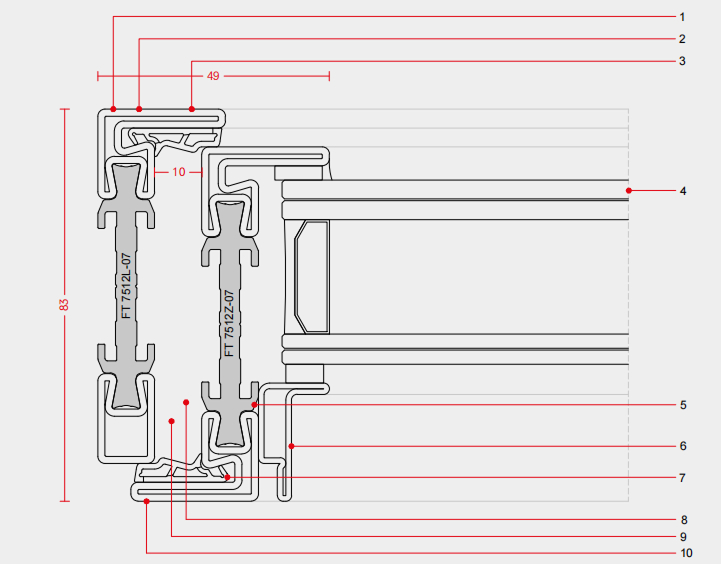

cold formed and sharp-edged 1.5mm thick Cor-Ten steel profiles – high precision production lines
continuously welded profile, high mechanical performance
can be both internally and externally flush or overlapping, or externally flush and internally overlapping
profile depth compatible with insulating glass up to 55 mm
fiberglass-reinforced polyamide insulator
wide choice of glazing beads, rectangular, triangular and double “L” shape
EPDM co-extruded sealing gaskets
wide choice of specific fittings, including both visible and conceived hinges
side-hung, top-hung and bottom-hung windows, tilt and turn, pivoting windows, sliding and folding doors
surface finish with the distinctive oxidation patina of Cor-Ten, properly stabilized
Optional
hardware
DSCF2415
The FerroFinestra W50 TB retains classic hot-rolled profiles with thermal break design.
