Custom CPX TB allows the production of stainless steel thermal break
profiles based on a tailor-made concept.
An extremely innovative solution, designed to allow architects to design
every single detail.

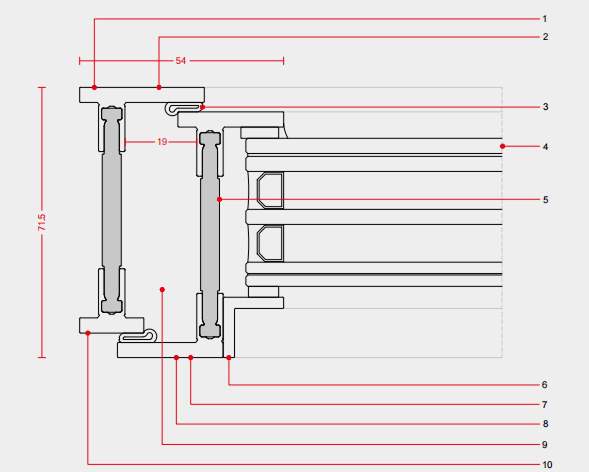

Custom CPX TB profiles are developed from a solid core of stainless steel
and polyamide, to which flanges of customized thickness, dimensions
and appearance can be laser-welded, to meet the requirements of
each specific architectural project. Custom CPX TB allows to draw any
profile design, opening up countless possible solutions and releasing the
architect’s creativity.
Main Features
stainless steel AISI 304 – 316L
customized design
self-adhesive non-shrinking gaskets
profile depth compatible with high performance insulating glass
thermal barrier in fiberglass reinforced polyamide
choice of different glazing beads
compatibility with commercial fittings
compatibility with friction hinges
side-hung, top-hung and bottom-hung windows
surface finishes: satinizing or burnishing; coating in any RAL or customized colours, for great planning freedom
Optional
hardware
DSCF2415
The FerroFinestra W50 TB retains classic hot-rolled profiles with thermal break design.
